USO PESADO

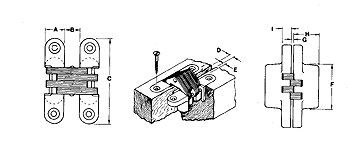

DIMENSION	216	218	220
A	1" 25.40 mm	1 1/8" 28.58 mm	1 3/8" 34.93 mm
B	23/32" 18.26 mm	7/8" 22.23 mm	1 1/16" 26.99 mm
C	4 5/8" 117.48 mm	4 5/8" 117.48 mm	5 1/2" 139.70 mm
D	7/32" 5.56 mm	3/8" 9.53 mm	1/2" 12.70 mm
E	1/4" 6.35 mm	1/4" 6.35 mm	9/32" 7.14 mm
F	2 19/32" 65.88 mm	2 7/16" 61.91 mm	2 15/16" 74.61 mm
G	1/16" 1.59 mm	1/16" 1.59 mm	1/16" 1.59 mm
H	1 7/16" 36.51 mm	1 19/32" 40.48 mm	1 15/16" 49.21 mm
I	15/32" 11.91 mm	13/32" 10.32 mm	15/32" 11.91 mm
Min. Wood Thickness	1 3/8" 34.93 mm	1 3/4" 44.45 mm	2" 50.80 mm
Screw Sizes	#14 x 1 1/2" 6.3 x 38 mm	#10 x 1 1/2" 4.8 x 38 mm	#12 x 1 1/2" 5.5 x 38 mm
Soft Wood Pilot Hole	No. 32	No. 43	No. 38
Hard Wood Pilot Hole	No. 10	No. 31	No. 25
Hinge Weight	1.64 lb.	1.84 lb.	3.15 lb.
