Pasos para el armado de los cajones Metabox.

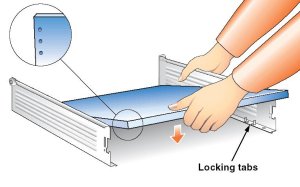

Position drawer bottom with predrilled 5mm holes over both drawer profiles and push down bottom firmly to engage locking tabs.

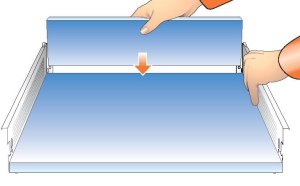

Place drawer back between drawer profiles.

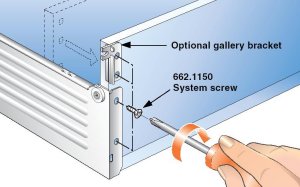

Install assembly screws through drawer profiles and into prebored
5mm holes in the back panel.

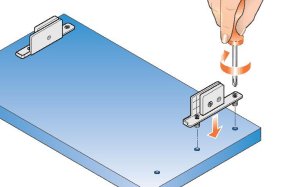

Attach front fixing brackets into prebored 10mm holes in drawer front (Expando version shown above).

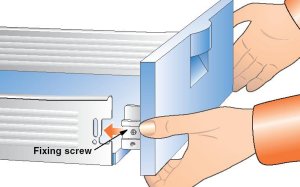

Install front by inserting fixing brackets onto drawer profiles.
Tighten fixing screws with POZI screwdriver.

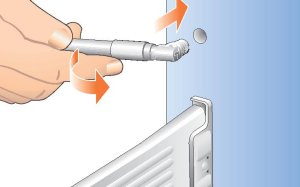

Attach INSERTA end of gallery rod into drawer front, then swing
other end to lock.

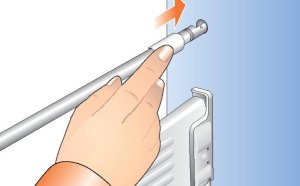

Clip back of gallery rod onto the gallery bracket.

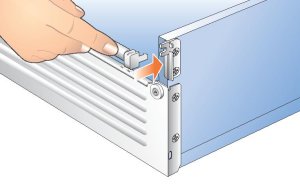

Slide gallery cover forward to snap onto front mechanism.
